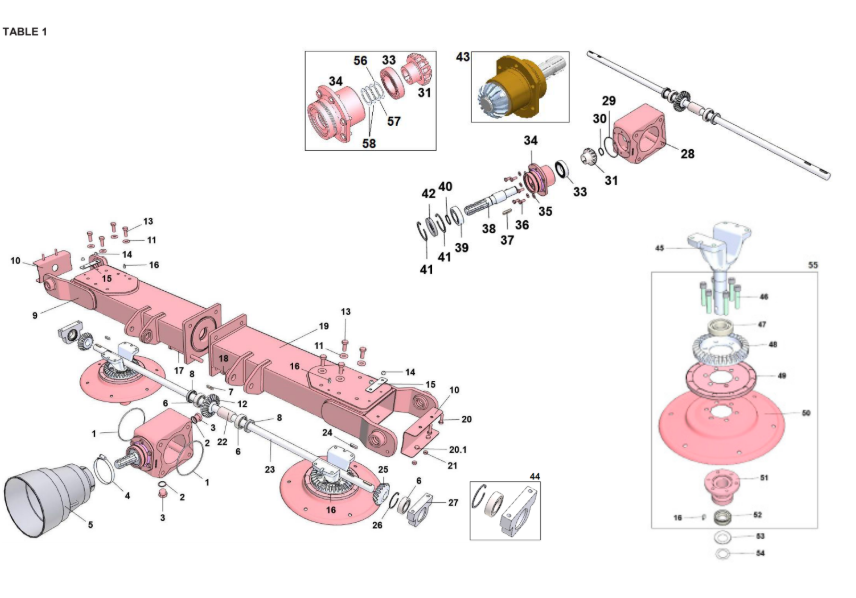

Tedder Gear Box and Drum Gears Schematic

Press control and mousewheel to zoom in & out

S.No.	Part #	Product Name	Option	Price	Qty
		Tedder Gear Box and Drum Gears Schematic		0.00	Tedder Gear Box and Drum Gears Schematic quantity
1	AP10010702	ORING – 2.255 142,5x3,53 More Info		$0.00	Tedder Gear Box and Drum Gears Schematic quantity
2	AP3030409	COPPER WASHER – 3⁄4” More Info		$0.00	Tedder Gear Box and Drum Gears Schematic quantity
3	AP4010816	PLUG 3/4 More Info		$0.00	Tedder Gear Box and Drum Gears Schematic quantity
4	AP4010702	BAND More Info		$0.00	Tedder Gear Box and Drum Gears Schematic quantity
5	AP9070101	COVER More Info		$0.00	Tedder Gear Box and Drum Gears Schematic quantity
6	AP12240108	BEARING 6206 2RS More Info		$0.00	Tedder Gear Box and Drum Gears Schematic quantity
7		Tab More Info	Variation	$0.00	Tedder Gear Box and Drum Gears Schematic quantity
8	AP12260002	OIL SEAL – ATG 1553010 More Info		$0.00	Tedder Gear Box and Drum Gears Schematic quantity
9		R LATERAL ARM More Info	Model	$0.00	Tedder Gear Box and Drum Gears Schematic quantity
10	AP18037257	CENTRAL CLOSING HOUSING More Info		$0.00	Tedder Gear Box and Drum Gears Schematic quantity
11	AP3030800	WASHER M12 S.E. More Info		$0.00	Tedder Gear Box and Drum Gears Schematic quantity
12	AP8010304	BEVEL PINION FOR ROTOR More Info		$0.00	Tedder Gear Box and Drum Gears Schematic quantity
13	AP3010230	HH SCREW M12X40 More Info		$0.00	Tedder Gear Box and Drum Gears Schematic quantity
14	AP3020209	SELF LOCKING NUT M8 More Info		$0.00	Tedder Gear Box and Drum Gears Schematic quantity
15	AP18033544	PLATE More Info		$0.00	Tedder Gear Box and Drum Gears Schematic quantity
16	AP3090101	CREASE ZERK M8X1 More Info		$0.00	Tedder Gear Box and Drum Gears Schematic quantity
17	AP3010813	HH SCREW M14X170 ZN More Info		$0.00	Tedder Gear Box and Drum Gears Schematic quantity
18	AP3020203	SELF LOCKING NUT M10 More Info		$0.00	Tedder Gear Box and Drum Gears Schematic quantity
19	AP18033976	L LATERAL ARM More Info		$0.00	Tedder Gear Box and Drum Gears Schematic quantity
20	AP3010780	HH SCREW M8X30 ZN More Info		$0.00	Tedder Gear Box and Drum Gears Schematic quantity
21	AP3010250	HH SCREW M8X16 ZN More Info		$0.00	Tedder Gear Box and Drum Gears Schematic quantity
22	AP3020302	NUT M8 More Info		$0.00	Tedder Gear Box and Drum Gears Schematic quantity
23	AP12070330	SPACER 42X8X74 More Info		$0.00	Tedder Gear Box and Drum Gears Schematic quantity
24		SHAFT TRASMISSION L. More Info	Model	$0.00	Tedder Gear Box and Drum Gears Schematic quantity
25	AP3110008	TAB 8X7X30 More Info		$0.00	Tedder Gear Box and Drum Gears Schematic quantity
26	AP8010303	BEVEL PINION FOR ROTOR More Info		$0.00	Tedder Gear Box and Drum Gears Schematic quantity
27	AP3120108	SNAP RING I.62 More Info		$0.00	Tedder Gear Box and Drum Gears Schematic quantity
28	AP18033702	SUPPORT SHAFT More Info		$0.00	Tedder Gear Box and Drum Gears Schematic quantity
29	AP18033776	HAY TEDDEER GEARBOX More Info		$0.00	Tedder Gear Box and Drum Gears Schematic quantity
30	AP10010741	ORING – 2154 94,92x2,62 More Info		$0.00	Tedder Gear Box and Drum Gears Schematic quantity
31	AP3120101	CIR CLIP Ø30 More Info		$0.00	Tedder Gear Box and Drum Gears Schematic quantity
32	AP8010302	BEVEL PINION CENTRAL BOX More Info		$0.00	Tedder Gear Box and Drum Gears Schematic quantity
33	AP12240190	BEARING 6009 2RS More Info		$0.00	Tedder Gear Box and Drum Gears Schematic quantity
34	AP18035940	SLEEVE More Info		$0.00	Tedder Gear Box and Drum Gears Schematic quantity
35	AP3030802	WASHER M12 S.E. More Info		$0.00	Tedder Gear Box and Drum Gears Schematic quantity
36	AP3010294	HH SCREW M8X20 ZN More Info		$0.00	Tedder Gear Box and Drum Gears Schematic quantity
37	AP3110003	TAB 8X7X40 More Info		$0.00	Tedder Gear Box and Drum Gears Schematic quantity
38	AP12320301	PTO SHAFT More Info		$0.00	Tedder Gear Box and Drum Gears Schematic quantity
39	AP12240146	BEARING 7207 B More Info		$0.00	Tedder Gear Box and Drum Gears Schematic quantity
40	AP3120102	CIR CLIP D.35 More Info		$0.00	Tedder Gear Box and Drum Gears Schematic quantity
41		SNAP RING E72 More Info		$0.00	Tedder Gear Box and Drum Gears Schematic quantity
42	AP12260003	OIL SEAL - ATG 1723510 More Info		$0.00	Tedder Gear Box and Drum Gears Schematic quantity
43	AP18035955	TRANSMISSION UNIT More Info		$0.00	Tedder Gear Box and Drum Gears Schematic quantity
44	AP18033601	COMPLETE DRAFT SUPPORT More Info		$0.00	Tedder Gear Box and Drum Gears Schematic quantity
45	AP18034226	CENTRAL PIN WITH BRACKET More Info		$0.00	Tedder Gear Box and Drum Gears Schematic quantity
46	AP3010605	SCREW TCEI M12X55 More Info		$0.00	Tedder Gear Box and Drum Gears Schematic quantity
47	AP12240109	BEARING 6207 More Info		$0.00	Tedder Gear Box and Drum Gears Schematic quantity
48	AP18031169	BEVEL CROWN FOR ROTOR More Info		$0.00	Tedder Gear Box and Drum Gears Schematic quantity
49	AP18033532	PROTECTION SCREEN More Info		$0.00	Tedder Gear Box and Drum Gears Schematic quantity
50	AP18031170	ARM CONNECTION FLANGE More Info		$0.00	Tedder Gear Box and Drum Gears Schematic quantity
51	AP18031171	SAFETY LOOP More Info		$0.00	Tedder Gear Box and Drum Gears Schematic quantity
52	AP12240160	BEARING 32007A More Info		$0.00	Tedder Gear Box and Drum Gears Schematic quantity
53	AP10011315	NILOS RING 32007AV More Info		$0.00	Tedder Gear Box and Drum Gears Schematic quantity
54	AP3120126	AXIAL WASHER PS 355205 More Info		$0.00	Tedder Gear Box and Drum Gears Schematic quantity
55	AP43902114	FLANGE UNIT More Info		$0.00	Tedder Gear Box and Drum Gears Schematic quantity
56	AP3030217	AP3030217 More Info		$0.00	Tedder Gear Box and Drum Gears Schematic quantity
57	AP3030276	AP3030276 More Info		$0.00	Tedder Gear Box and Drum Gears Schematic quantity
