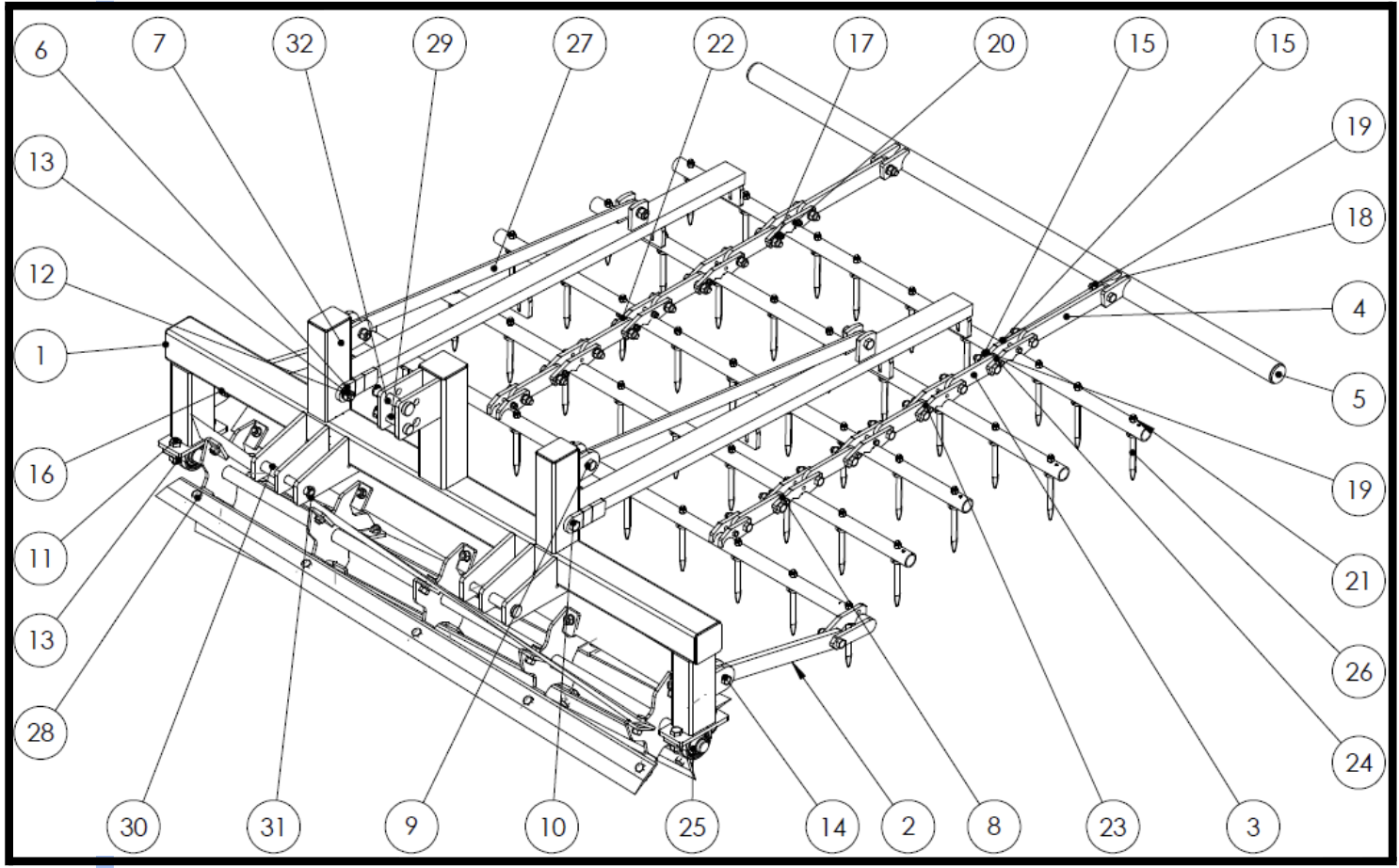

DoAll Main Frame Schematic – AgLine Farm Equipment

Press control and mousewheel to zoom in & out

S.No.	Part #	Product Name	Option	Price	Qty
		DoAll Main Frame Schematic		0.00	DoAll Main Frame Schematic quantity
1		Do-All Main Frame Assembly More Info	Color	$529.36	DoAll Main Frame Schematic quantity
2	714-2044B	Do-All Harrow Drawbar More Info		$62.67	DoAll Main Frame Schematic quantity
3	714-2043B	Do-All Harrow Link More Info		$7.95	DoAll Main Frame Schematic quantity
4	714-2045B	Do-All Rear Harrow Drawbar More Info		$13.47	DoAll Main Frame Schematic quantity
5	714-2042B	Do-All Rear Harrow Assembly More Info		$194.04	DoAll Main Frame Schematic quantity
6		Do-All Gang Channel Assembly More Info	Color	$209.55	DoAll Main Frame Schematic quantity
7	714-2055B	Do-All 1st Spike Harrow Weldment More Info		$137.44	DoAll Main Frame Schematic quantity
8	714-2056B	Do-All 2nd Spike Harrow Weldment More Info		$121.07	DoAll Main Frame Schematic quantity
9	2188-23674	5/8"-11 x 3 1/2" Gr. 5 Hex Cap Screw Clear Zinc More Info		$2.69	DoAll Main Frame Schematic quantity
10	2477-78620	5/8";-11 x 5 1/4"; Gr. 5 Hex Cap Screw Zinc More Info		$2.23	DoAll Main Frame Schematic quantity
11	2941-89625	5/8"-11 X 2 1/2" GR 5. HEX CAP SCREW CLEAR ZINC More Info		$1.73	DoAll Main Frame Schematic quantity
12	1295-42164	5/8" Lock Washer More Info		$0.67	DoAll Main Frame Schematic quantity
13	1334-38274	5/8"-11 Gr. C Locknut Coarse Thread Zinc More Info		$0.47	DoAll Main Frame Schematic quantity
14	1731-162718	5/8"-11 x 3" Gr. 5 Hex Cap Screw Clear Zinc More Info		$1.65	DoAll Main Frame Schematic quantity
15	2641-13845	3/8"-16 X 2 1/2" HEX CAP SCREW ZINC More Info		$0.69	DoAll Main Frame Schematic quantity
16	1295-42164-1	5/8" Lock Washer (Copy) More Info		$0.67	DoAll Main Frame Schematic quantity
17	1625-48962	3/8"; SPLIT LOCK WASHER ZINC More Info		$0.30	DoAll Main Frame Schematic quantity
18	1334-38274-1	5/8"-11 LOCK HEX NUT ZINC COPY More Info		$0.47	DoAll Main Frame Schematic quantity
19	1942-30687	3/8"-16 TRI CRIMP LOCK NUT More Info		$0.23	DoAll Main Frame Schematic quantity
20	1625-48962-1	3/8"; SPLIT LOCK WASHER ZINC (Copy) More Info		$0.30	DoAll Main Frame Schematic quantity
21	2874-34105	7/16" - 14 UNC TRI-CRIMP LOCK NUT More Info		$5.44	DoAll Main Frame Schematic quantity
22	714-2057B	DO-ALL 3RD SPIKE HARROW WELDMENT More Info		$94.40	DoAll Main Frame Schematic quantity
23	714-2058B	DO-ALL 4TH SPIKE HARROW WELDMENT More Info		$101.47	DoAll Main Frame Schematic quantity
24	714-2059B	DO-ALL 5TH SPIKE HARROW WELDMENT More Info		$94.40	DoAll Main Frame Schematic quantity
25	2598-478320	1.5" ID PILLOW BLOCK BEARING More Info		$53.16	DoAll Main Frame Schematic quantity
26	3149-12720	THREADED HARROW SPIKE 7/16"-14 X 8" More Info		$5.44	DoAll Main Frame Schematic quantity
27		DO-ALL STRUT BAR ASSEMBLY More Info	Color	$67.84	DoAll Main Frame Schematic quantity
28	714-2041B	DO-ALL 72 IN. REEL ASSEMBLY More Info		$644.35	DoAll Main Frame Schematic quantity
29	2199-131616	CAT. 1 TOP LINK PIN, 3 7/8” USABLE LENGTH More Info		$9.21	DoAll Main Frame Schematic quantity
30	2491-271133	Cat 1 & 2 Step Pin More Info		$11.07	DoAll Main Frame Schematic quantity
31	2172-111530	Lynch Pin More Info		$0.99	DoAll Main Frame Schematic quantity
32	2277-151268	CAT. 2 TOP LINK PIN, 4 3/8” USABLE LENGTH More Info		$12.76	DoAll Main Frame Schematic quantity
