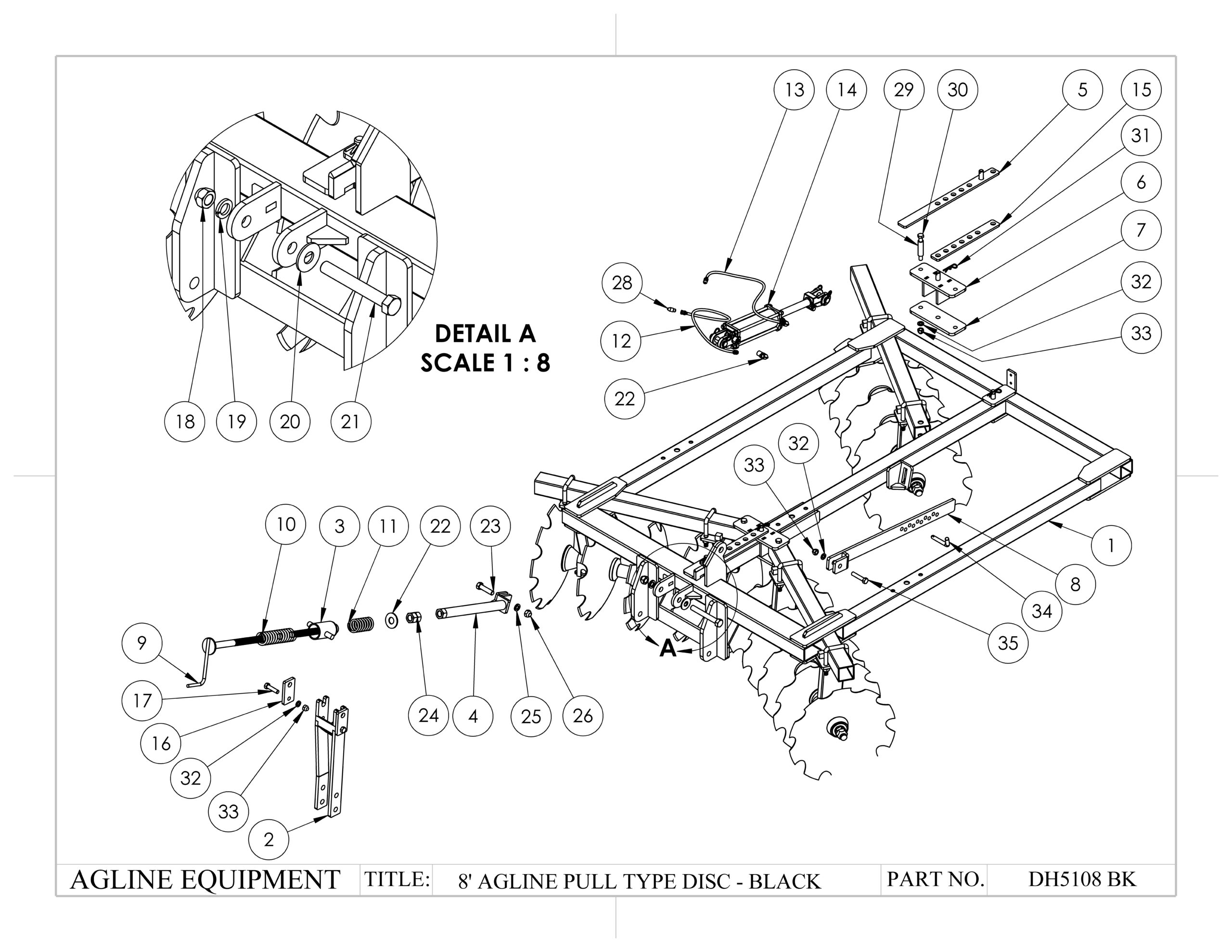

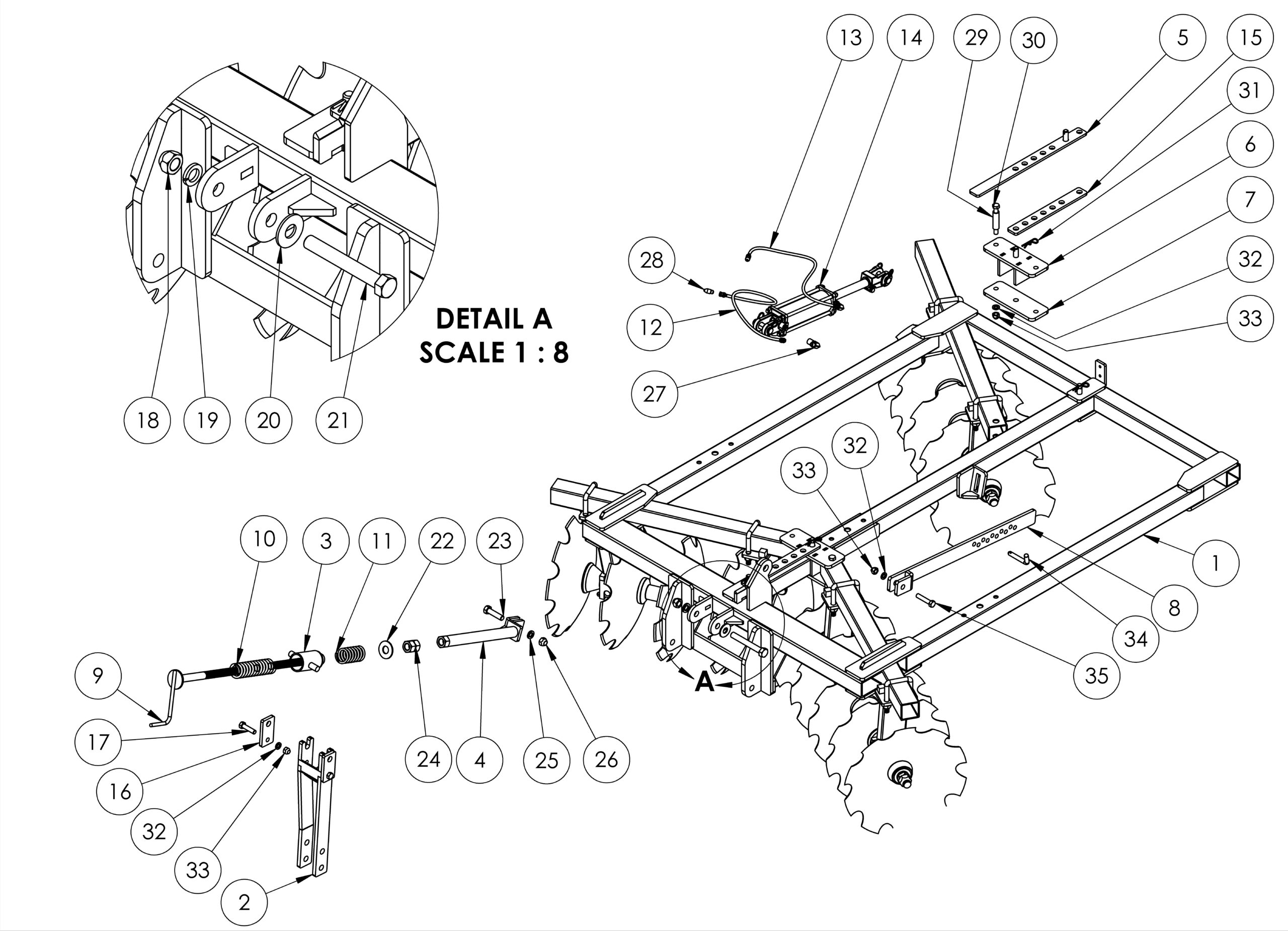

DH51 Main Frame Schematic – AgLine Farm Equipment

Press control and mousewheel to zoom in & out

S.No.	Part #	Product Name	Option	Price	Qty
		DH51 Main Frame Schematic		0.00	DH51 Main Frame Schematic quantity
1	229-85178	Main Frame DH51 Series More Info	Color Model	$1733.33	DH51 Main Frame Schematic quantity
2		Rocker Arm More Info	Color	$100.00	DH51 Main Frame Schematic quantity
3		Spring Housing More Info	Color	$33.33	DH51 Main Frame Schematic quantity
4		Adjustment Tube Welded DH51 More Info	Color Model	$108.00	DH51 Main Frame Schematic quantity
5		Angle Adjustment Lever More Info	Color	$30.67	DH51 Main Frame Schematic quantity
6		Slide Plate Top DH51 More Info	Color Model	$0.00	DH51 Main Frame Schematic quantity
7		Slide Plate Bottom for All Disc Harrows More Info	Color	$27.05	DH51 Main Frame Schematic quantity
8		Depth Control Bar Weldment More Info	Color	$86.67	DH51 Main Frame Schematic quantity
9		Threaded Adjustment Rod DH51 More Info	Color	$73.89	DH51 Main Frame Schematic quantity
10		Adjustment Spring 8 1/4" More Info	Color	$46.67	DH51 Main Frame Schematic quantity
11		Adjustment Spring 4 1/4" More Info	Color	$37.33	DH51 Main Frame Schematic quantity
12		130" Hydraulic Hose (2011-442226) More Info		$104.82	DH51 Main Frame Schematic quantity
13		140" Hydraulic Hose (2274-442126) More Info		$109.39	DH51 Main Frame Schematic quantity
14	2890-47116	DH51 Hydraulic Cylinder More Info		$0.00	DH51 Main Frame Schematic quantity
15		Gang Angle Adjustment Bar More Info	Color Model	$26.67	DH51 Main Frame Schematic quantity
16		Retainer Plate More Info	Color	$8.00	DH51 Main Frame Schematic quantity
17	1092-172716	5/8"-11 x 2 1/2" Gr. 8 Hex Cap Screw More Info		$0.00	DH51 Main Frame Schematic quantity
18	1679-29184	7/8" Lock Nut Zinc More Info		$1.28	DH51 Main Frame Schematic quantity
19	1808-31184	7/8" Lock Washer Zinc More Info		$0.41	DH51 Main Frame Schematic quantity
20	1047-32184	7/8" Flat Washer Zinc More Info		$0.56	DH51 Main Frame Schematic quantity
21	1083-143135	7/8"-9 x 6.5" Gr. 5 Hex Cap Screw Zinc More Info		$0.00	DH51 Main Frame Schematic quantity
22	1330-32204	1 1/8" Flat Washer Zinc More Info		$1.19	DH51 Main Frame Schematic quantity
23	1507-142918	3/4"-10 x 3: Gr. 5 Hex Cap Screw Zinc More Info		$2.73	DH51 Main Frame Schematic quantity
24	1877-12203	1 1/8" Plain Hex Nut More Info		$0.00	DH51 Main Frame Schematic quantity
25	1102-281739	3/4" Lock Washer More Info		$0.40	DH51 Main Frame Schematic quantity
26	1730-152937	3/4" Hex Lock Nut More Info		$0.73	DH51 Main Frame Schematic quantity
27		90 Elbow 3/8"JICM x 1/2"NPTM (2537-51324) More Info		$10.67	DH51 Main Frame Schematic quantity
28		Pioneer Quick Couple Male (2296-38318) More Info		$22.53	DH51 Main Frame Schematic quantity
29	120-1777	Gang Bushing 3 1/16" More Info		$4.67	DH51 Main Frame Schematic quantity
30	1901-142728	5/8"-11 x 5 Gr. 5 Hex Cap Screw Zinc More Info		$2.72	DH51 Main Frame Schematic quantity
31	2811-322110	R Clip Pin 4mm More Info		$1.31	DH51 Main Frame Schematic quantity
32	1295-42164	5/8" Lock Washer More Info		$0.67	DH51 Main Frame Schematic quantity
33	1334-38274	5/8"-11 Gr. C Locknut Coarse Thread Zinc More Info		$0.00	DH51 Main Frame Schematic quantity
34	2037-103221	5/8" x 3" Bent Pin More Info		$0.00	DH51 Main Frame Schematic quantity
35	1759-173120	7/8"-9 x 3 1/2" Gr/ 8 Hex Cap Screw Zinc More Info		$5.17	DH51 Main Frame Schematic quantity

Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “DH51 Main Frame Schematic”

Reviews

sales assistance

customer service

Account

About

Learn More

Reviews

Related products

DH51 Scraper Kit Schematic

DH51 Wheel Carriage Schematic

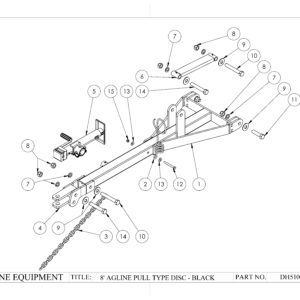

DH51 Tongue Assembly
