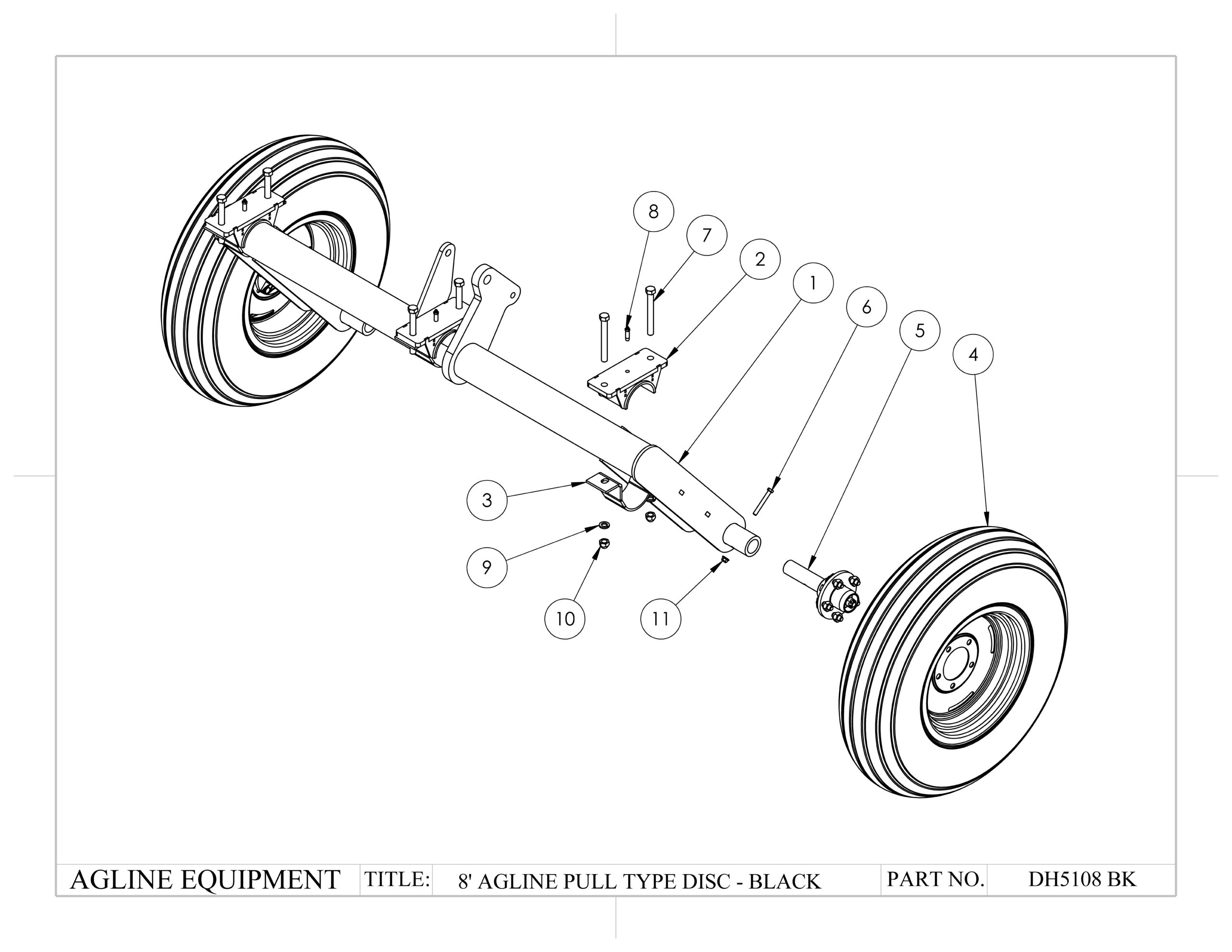

DH51 Wheel Carriage Schematic – AgLine Farm Equipment

Press control and mousewheel to zoom in & out

S.No.	Part #	Product Name	Option	Price	Qty	Action
		DH51 Wheel Carriage Schematic		0.00	DH51 Wheel Carriage Schematic quantity
1		DH51 Wheel Carriage More Info	Disk Color	$1300.00	DH51 Wheel Carriage Schematic quantity
2		Wheel Carriage Bearing Top More Info	Color	$60.00	DH51 Wheel Carriage Schematic quantity
3		Wheel Carriage Bearing Bottom More Info	Color	$46.67	DH51 Wheel Carriage Schematic quantity
4		Tire and Wheel Assembly 9.5- 15" Black (2287-37418) More Info		$353.79	DH51 Wheel Carriage Schematic quantity
5	961-402128L	1 5/8" Spindle and Hub (961-402128L) More Info		$218.67	DH51 Wheel Carriage Schematic quantity
6	1678-141918	3/8"-16 x 3" Gr. 5 Cap Screw Zinc More Info		$2.65	DH51 Wheel Carriage Schematic quantity
7	1379-142640	5/8"-11 x 5 1/2" Gr. 5 Hex Cap Screw Zinc More Info		$2.97	DH51 Wheel Carriage Schematic quantity
8	2486-361610	1/8" x 1 3/4" Grease Fitting More Info		$6.67	DH51 Wheel Carriage Schematic quantity
9	1295-42164	5/8" Lock Washer More Info		$0.67	DH51 Wheel Carriage Schematic quantity
10	1334-38274	5/8"-11 Gr. C Locknut Coarse Thread Zinc More Info		$0.00	DH51 Wheel Carriage Schematic quantity
11	1403-25194	3/8"-16 Flange Locking Nut Gr. 5 More Info		$1.20	DH51 Wheel Carriage Schematic quantity
