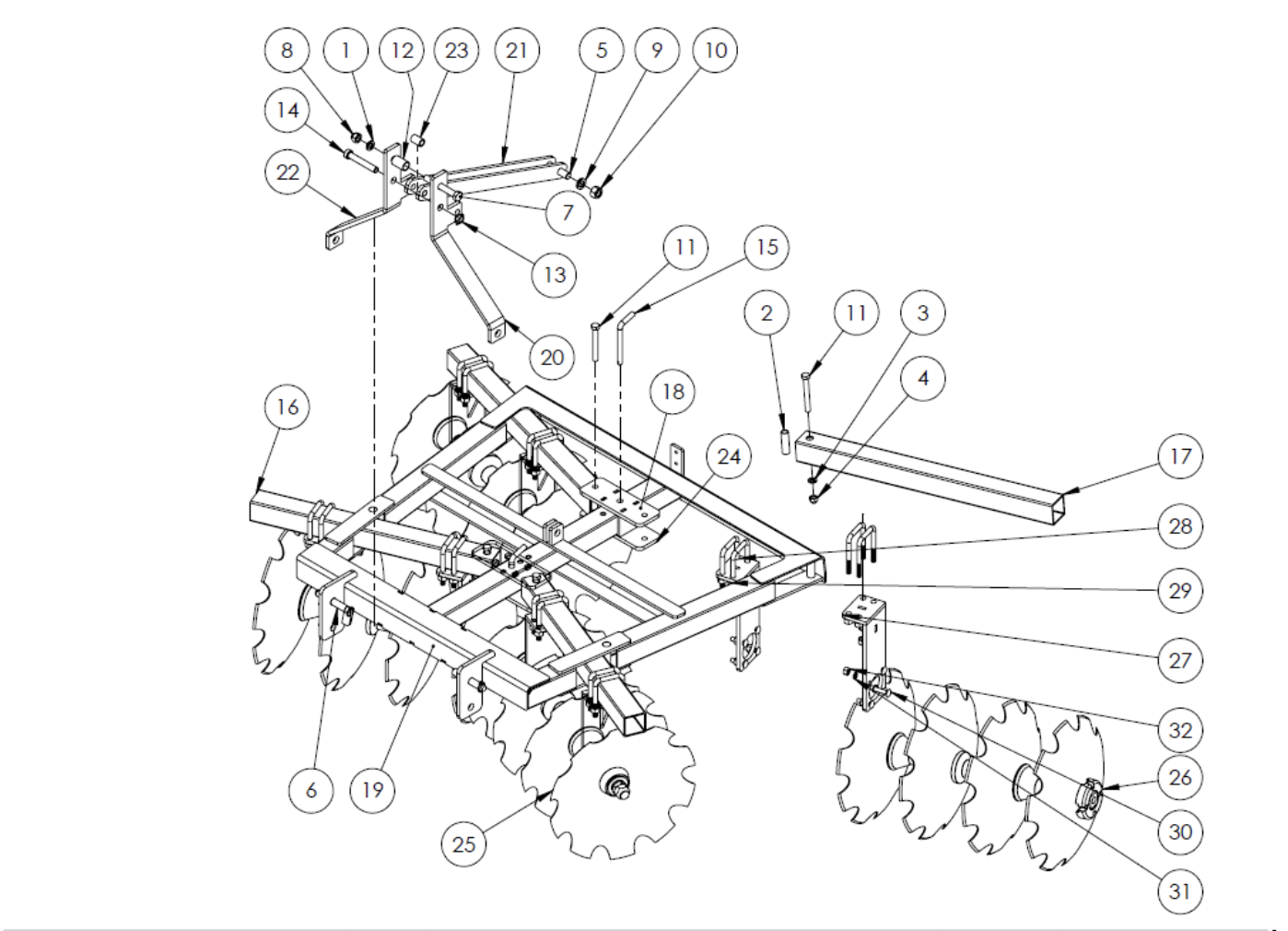

DH33 Full Assembly Schematic – AgLine Farm Equipment

Press control and mousewheel to zoom in & out

S.No.	Part #	Product Name	Option	Price	Qty
		DH33 Full Assembly Schematic		0.00	DH33 Full Assembly Schematic quantity
1	1102-281739	3/4" Lock Washer More Info		$0.40	DH33 Full Assembly Schematic quantity
2	120-1777	Gang Bushing 3 1/16" More Info		$4.67	DH33 Full Assembly Schematic quantity
3	1295-42164	5/8" Lock Washer More Info		$0.67	DH33 Full Assembly Schematic quantity
4	1334-38274	5/8"-11 Gr. C Locknut Coarse Thread Zinc More Info		$0.47	DH33 Full Assembly Schematic quantity
5	1648-14123	7/8"-9 x 4" Gr. 5 Hex Bolt Zinc More Info		$3.73	DH33 Full Assembly Schematic quantity
6	1668-311829	LIFT ARM PIN, CATEGORY 1, ADJUSTABLE More Info		$0.00	DH33 Full Assembly Schematic quantity
7	1711-142930	3/4" -10 X 5 1/2" GR. 5 HEX BOLT ZINC More Info		$3.73	DH33 Full Assembly Schematic quantity
8	1730-152937	3/4" Hex Lock Nut More Info		$0.73	DH33 Full Assembly Schematic quantity
9	1808-31184	7/8" Lock Washer Zinc More Info		$0.41	DH33 Full Assembly Schematic quantity
10	1879-18315	7/8" Hex Nut Zinc More Info		$1.17	DH33 Full Assembly Schematic quantity
11	1901-142728	5/8"-11 x 5 Gr. 5 Hex Cap Screw Zinc More Info		$2.72	DH33 Full Assembly Schematic quantity
12	215-541937	DOM Bushing 1.25" OD x 1.94" x 0.12" More Info		$3.75	DH33 Full Assembly Schematic quantity
13	2172-111530	Lynch Pin More Info		$0.99	DH33 Full Assembly Schematic quantity
14	2199-131616	CAT. 1 TOP LINK PIN, 3 7/8” USABLE LENGTH More Info		$9.21	DH33 Full Assembly Schematic quantity
15	2422-25821	5/8" x 5 Bent Pin More Info		$4.11	DH33 Full Assembly Schematic quantity
16	940-3376B	DH33 3" x 3" x 33" Gang Beam - Black More Info		$0.00	DH33 Full Assembly Schematic quantity
17	940-3377B	DH33 3" x 3" x 37" Gang Beam - Black More Info		$0.00	DH33 Full Assembly Schematic quantity
18	940-5133B	DH33 GANG SLIDE PLATE TOP - BLACK More Info		$0.00	DH33 Full Assembly Schematic quantity
19	940-5134B	DH33 MAIN FRAME - BLACK More Info		$0.00	DH33 Full Assembly Schematic quantity
20		DH33 A-Frame LH More Info	color	$61.68	DH33 Full Assembly Schematic quantity
21	740-9833B	DH33 MAST STRUT - BLACK More Info		$0.00	DH33 Full Assembly Schematic quantity
22		DH33 A-Frame RH More Info	color	$61.68	DH33 Full Assembly Schematic quantity
23	740-9830	DH33 MAIN FRAME MAST BUSHING More Info		$0.00	DH33 Full Assembly Schematic quantity
24	992-37712B	SLIDE PLATE BOTTOM FOR ALL DH - BLACK More Info		$0.00	DH33 Full Assembly Schematic quantity
25	GA54826	9420NS FRONT SEALED GANG ASSEMBLY (4 BLADES 9" SPACING) More Info		$0.00	DH33 Full Assembly Schematic quantity
26	GA55826	9420NS REAR SEALED GANG ASSEMBLY (4 BLADES 9" SPACING) More Info		$0.00	DH33 Full Assembly Schematic quantity
27	2559-371253R	FLANGE BEARING HANGER More Info		$0.00	DH33 Full Assembly Schematic quantity
28	1349-161624	5/8" x 3 x 4 3/4" U-bolt More Info		$17.56	DH33 Full Assembly Schematic quantity
29	1334-38274-1	5/8"-11 LOCK HEX NUT ZINC COPY More Info		$0.00	DH33 Full Assembly Schematic quantity
30	1071-152315	1/2 - 13 X 2" GR.5 CARRIAGE BOLT More Info		$0.00	DH33 Full Assembly Schematic quantity
31	1466-271438	1/2" SPLIT LOCK WASHER ZINC More Info		$0.00	DH33 Full Assembly Schematic quantity
32	1081-26234	1/2" NYLON LOCKING NUT More Info		$0.00	DH33 Full Assembly Schematic quantity
