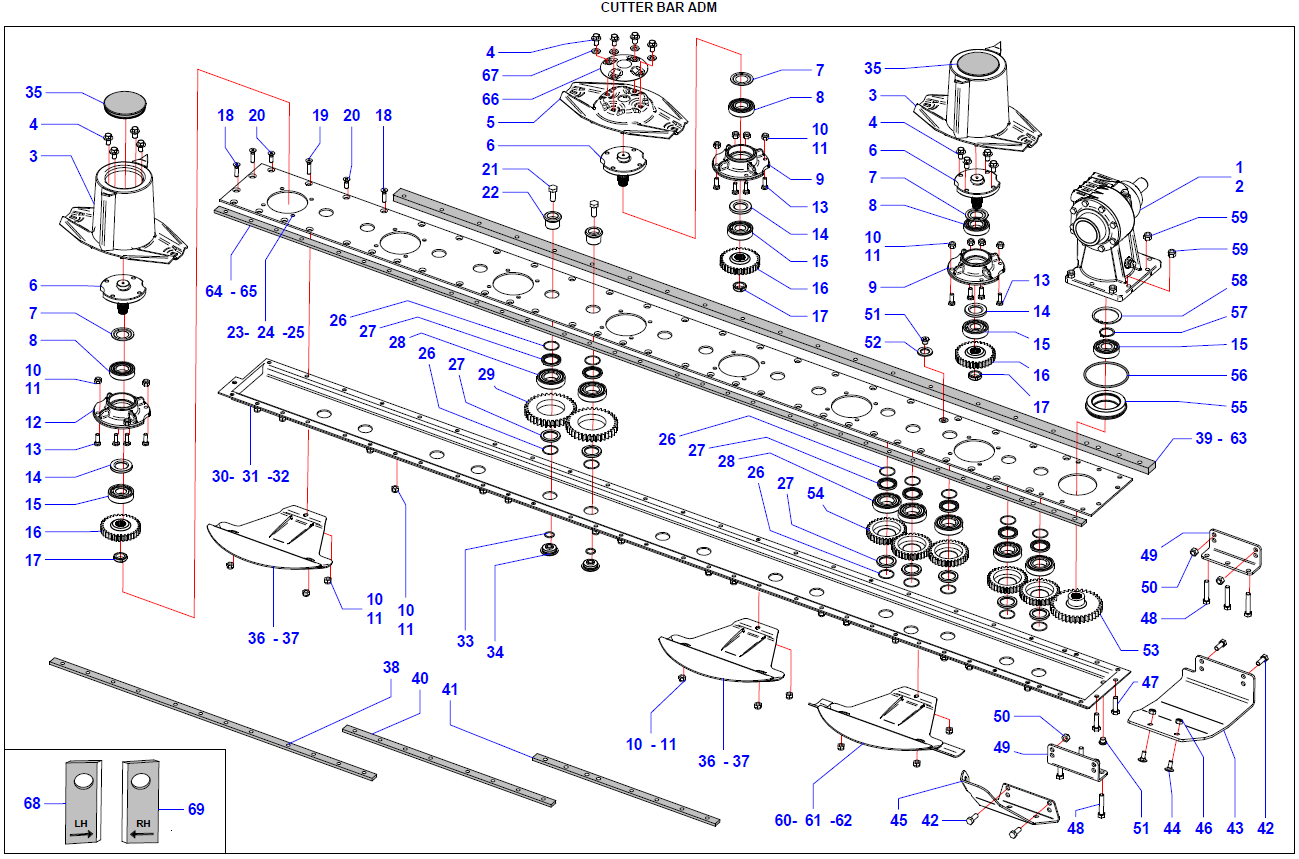

Parts – Cutter Bar ADM 108-109-110 – AgLine Farm Equipment

Press control and mousewheel to zoom in & out

S.No.	Part #	Product Name	Price	Qty
		Parts – Cutter Bar ADM 108-109-110	0.00	Parts - Cutter Bar ADM 108-109-110 quantity
1	APC654F072	GEAR BOX More Info	$0.00	Parts - Cutter Bar ADM 108-109-110 quantity
2	APC654F092	GEAR BOX More Info	$0.00	Parts - Cutter Bar ADM 108-109-110 quantity
3	APC654F039	BLADE HOLDER+CONVEYOR More Info	$343.33	Parts - Cutter Bar ADM 108-109-110 quantity
4	APC654F074	SCREW M12x20 More Info	$0.00	Parts - Cutter Bar ADM 108-109-110 quantity
5	APC654F038	BLADE HOLDER More Info	$233.33	Parts - Cutter Bar ADM 108-109-110 quantity
6	APC654F029	SHAFT WITH FLANGE More Info	$0.00	Parts - Cutter Bar ADM 108-109-110 quantity
7	APC654F085	DUST COVER More Info	$2.93	Parts - Cutter Bar ADM 108-109-110 quantity
8	APV60E0003	BEARING 6207 More Info	$9.82	Parts - Cutter Bar ADM 108-109-110 quantity
9	APC654F030	BEARING SUPPORT ALUMINUM More Info	$38.20	Parts - Cutter Bar ADM 108-109-110 quantity
10	APC654F005	SELF-LOCKING NUT M10 More Info	$0.00	Parts - Cutter Bar ADM 108-109-110 quantity
11	APC654F093	SELF-LOCKING NUT M10 More Info	$2.93	Parts - Cutter Bar ADM 108-109-110 quantity
12	APC654F089	BEARING SUPPORT CAST IRON More Info	$47.31	Parts - Cutter Bar ADM 108-109-110 quantity
13	APC654F061	KNURLED SCREW M10x30 More Info	$2.93	Parts - Cutter Bar ADM 108-109-110 quantity
14	APC654F070	OIL SEAL Ø35xØ62x7 More Info	$2.93	Parts - Cutter Bar ADM 108-109-110 quantity
15	APV60E0016	BEARING 6306 More Info	$9.64	Parts - Cutter Bar ADM 108-109-110 quantity
16	APC654F037	GEAR M3.5 - 30 More Info	$80.67	Parts - Cutter Bar ADM 108-109-110 quantity
17	APC654F011	SELF-LOCKING NUT M25x1,5 More Info	$2.93	Parts - Cutter Bar ADM 108-109-110 quantity
18	APC654F082	SOCKET COUNTERSUNK HEAD SCREW M10x40 More Info	$0.00	Parts - Cutter Bar ADM 108-109-110 quantity
19	APC654F083	SOCKET COUNTERSUNK HEAD SCREW M10x45 More Info	$0.00	Parts - Cutter Bar ADM 108-109-110 quantity
20	APC654F081	SOCKET COUNTERSUNK HEAD SCREW M10x30 More Info	$0.00	Parts - Cutter Bar ADM 108-109-110 quantity
21	APC654F079	HEX CAP SCREW M14x35 More Info	$0.00	Parts - Cutter Bar ADM 108-109-110 quantity
22	APC654F058	SUPPORT SHAFT-UPPER More Info	$0.00	Parts - Cutter Bar ADM 108-109-110 quantity
23	APC654F066	(EOS 245) - CUTTER BAR HOUSING COVER More Info	$0.00	Parts - Cutter Bar ADM 108-109-110 quantity
24	APC654F067	(EOS 285) - CUTTER BAR HOUSING COVER More Info	$0.00	Parts - Cutter Bar ADM 108-109-110 quantity
25	APC654F104	(EOS 320) - CUTTER BAR HOUSING COVER More Info	$0.00	Parts - Cutter Bar ADM 108-109-110 quantity
26	APC654F009	O-RING Ø39,35xØ2,62 More Info	$0.00	Parts - Cutter Bar ADM 108-109-110 quantity
27	APC654F060	WASHER More Info	$0.00	Parts - Cutter Bar ADM 108-109-110 quantity
28	APV60A0014	BEARING 6208 More Info	$0.00	Parts - Cutter Bar ADM 108-109-110 quantity
29	APC654F027	GEAR M3.5 - 40 More Info	$0.00	Parts - Cutter Bar ADM 108-109-110 quantity
30	APC654F065	(EOS 245) - CUTTER BAR HOUSING More Info	$0.00	Parts - Cutter Bar ADM 108-109-110 quantity
31	APC654F068	(EOS 285) - CUTTER BAR HOUSING More Info	$0.00	Parts - Cutter Bar ADM 108-109-110 quantity
32	APC654F105	(EOS 320) - CUTTER BAR HOUSING More Info	$0.00	Parts - Cutter Bar ADM 108-109-110 quantity
33	APC654F088	O-RING Ø21,2xØ2,65 More Info	$0.00	Parts - Cutter Bar ADM 108-109-110 quantity
34	APC654F059	SUPPORT SHAFT-BOTTOM More Info	$0.00	Parts - Cutter Bar ADM 108-109-110 quantity
35	CAP654F043	COVER More Info	$0.00	Parts - Cutter Bar ADM 108-109-110 quantity
36	APC654F044	SKID More Info	$166.67	Parts - Cutter Bar ADM 108-109-110 quantity
37	APC654F094	SKID More Info	$187.11	Parts - Cutter Bar ADM 108-109-110 quantity
38	APC654F057	(EOS 245) - REINFORCEMENT More Info	$0.00	Parts - Cutter Bar ADM 108-109-110 quantity
39	APC654F054	(EOS 245) - REINFORCEMENT More Info	$0.00	Parts - Cutter Bar ADM 108-109-110 quantity
40	APC654F056	(EOS 245) - REINFORCEMENT More Info	$0.00	Parts - Cutter Bar ADM 108-109-110 quantity
41	APC654F055	(EOS 245) - REINFORCEMENT More Info	$0.00	Parts - Cutter Bar ADM 108-109-110 quantity
42	APC654F076	HEX CAP SCREW M12x30 More Info	$0.00	Parts - Cutter Bar ADM 108-109-110 quantity
43	APC654F051	SKID More Info	$0.00	Parts - Cutter Bar ADM 108-109-110 quantity
44	APC654F080	SQUARE NECK BOLT M10x25 More Info	$0.00	Parts - Cutter Bar ADM 108-109-110 quantity
45	APC654F052	FRONT SKID More Info	$0.00	Parts - Cutter Bar ADM 108-109-110 quantity
46	APC654F090	SELF LOCKING NUT M10 More Info	$0.00	Parts - Cutter Bar ADM 108-109-110 quantity
47	APC654F077	HEX CAP SCREW M12x45 More Info	$0.00	Parts - Cutter Bar ADM 108-109-110 quantity
48	APC654F078	HEX CAP SCREW M12x65 More Info	$0.00	Parts - Cutter Bar ADM 108-109-110 quantity
49	APC654F050	SUPPORTING PLATE More Info	$0.00	Parts - Cutter Bar ADM 108-109-110 quantity
50	APC654F008	SELF LOCKING NUT M12 More Info	$0.00	Parts - Cutter Bar ADM 108-109-110 quantity
51	APC654F086	OIL PLUG More Info	$0.00	Parts - Cutter Bar ADM 108-109-110 quantity
52	APC654F064	WASHER More Info	$0.00	Parts - Cutter Bar ADM 108-109-110 quantity
53	APC654F004	GEAR M3.5 - 40 More Info	$0.00	Parts - Cutter Bar ADM 108-109-110 quantity
54	APC654F028	GEAR M3.5 - 31 More Info	$0.00	Parts - Cutter Bar ADM 108-109-110 quantity
55	APC654F053	BEARING SUPPORT More Info	$0.00	Parts - Cutter Bar ADM 108-109-110 quantity
56	APC654F013	O-RING Ø120xØ5 More Info	$0.00	Parts - Cutter Bar ADM 108-109-110 quantity
57	APC654F087	CIRCLIPS FOR SHAFT 40 More Info	$0.00	Parts - Cutter Bar ADM 108-109-110 quantity
58	APC654F003	CIRCLIPS FOR HOLES 80 More Info	$0.00	Parts - Cutter Bar ADM 108-109-110 quantity
59	APC654F007	SELF LOCKING NUT M12 More Info	$0.00	Parts - Cutter Bar ADM 108-109-110 quantity
60	APC654F091	SKID EOS245 (LONG) More Info	$0.00	Parts - Cutter Bar ADM 108-109-110 quantity
61	APC654F048	SKID EOS285 (LONG) More Info	$0.00	Parts - Cutter Bar ADM 108-109-110 quantity
62	APC654F095	SKID EOS320 (LONG) More Info	$0.00	Parts - Cutter Bar ADM 108-109-110 quantity
63	APC654F062	(EOS 285) - REINFORCEMENT More Info	$0.00	Parts - Cutter Bar ADM 108-109-110 quantity
64	APC654F063	(EOS 285) - REINFORCEMENT More Info	$0.00	Parts - Cutter Bar ADM 108-109-110 quantity
65	APC654F097	(EOS 320) - REINFORCEMENT More Info	$0.00	Parts - Cutter Bar ADM 108-109-110 quantity
66	APC654F100	PART OF BLADE HOLDER More Info	$21.51	Parts - Cutter Bar ADM 108-109-110 quantity
67	APC654F101	WASHER More Info	$0.00	Parts - Cutter Bar ADM 108-109-110 quantity
68	APP25B0002	ADM Knife L.H. More Info	$5.63	Parts - Cutter Bar ADM 108-109-110 quantity
69	APP25B0001	ADM Knife R.H. More Info	$5.65	Parts - Cutter Bar ADM 108-109-110 quantity
