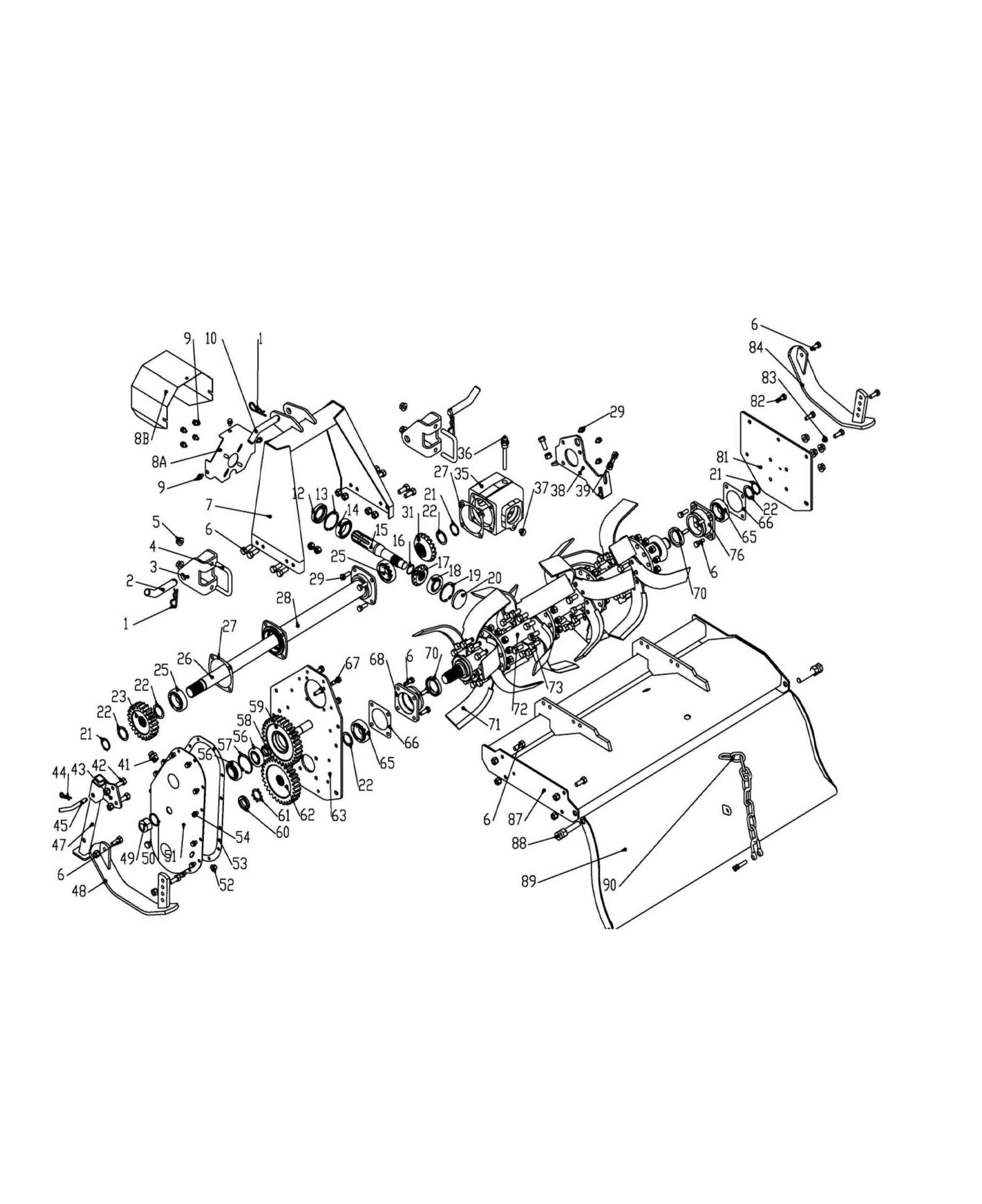

RTC Schematic – AgLine Farm Equipment

Press control and mousewheel to zoom in & out

S.No.	Part #	Product Name	Option	Price	Qty
		RTC Schematic		0.00	RTC Schematic quantity
1	APRC400000	“R CLIP 4MM More Info		$1.00	RTC Schematic quantity
2	APYT1066010204	RT Top HITCH PIN More Info		$5.23	RTC Schematic quantity
3	APTX0202	LOWER HITCH BRACKET More Info		$64.44	RTC Schematic quantity
4	APTX0203	“U” BOLT, LOWER HITCH BRACKET More Info		$6.67	RTC Schematic quantity
5	APNM120000	HEX NUT 12MM More Info		$0.51	RTC Schematic quantity
6	APBM101530	BOLT 10 X 30 More Info		$2.89	RTC Schematic quantity
7	APTX0101	A FRAME More Info		$73.33	RTC Schematic quantity
8	APTX030401	SUPPORT-GEARBOX SHIELD More Info		$15.56	RTC Schematic quantity
9	APBM812516	BOLT 8 X 1.25 X 16 More Info		$0.00	RTC Schematic quantity
10	APYT1066010202	RT HITCH PIN More Info		$5.63	RTC Schematic quantity
11		Blank 1 More Info		$0.00	RTC Schematic quantity
12	APOS356210	OIL SEAL 35.62.10 More Info		$5.56	RTC Schematic quantity
13	APB6007000	BEARING 6007 More Info		$5.11	RTC Schematic quantity
14	APSRI62000	SNAP RING D.30 INTERNAL More Info		$0.57	RTC Schematic quantity
15	APTX0307	INPUT SHAFT More Info		$43.33	RTC Schematic quantity
16	APSRE30000	SNAP RING D.30 EXTERNAL More Info		$0.77	RTC Schematic quantity
17	APTX0303	PINION GERA Z-13 More Info		$73.33	RTC Schematic quantity
18	APB30305	BEARING 30305 More Info		$10.67	RTC Schematic quantity
19	APSRI62000-1	SNAP RING D.62 INTERNAL (Copy) More Info		$0.57	RTC Schematic quantity
20	APTX0309	GEARBOX CAP (DIA 62.) More Info		$4.44	RTC Schematic quantity
21	APSRE34000	SNAP RING D.34 EXTERNAL More Info		$1.07	RTC Schematic quantity
22	APTX0402	SHIM 2MM More Info		$4.00	RTC Schematic quantity
23	APTX0507	GEAR DRIVE More Info		$88.00	RTC Schematic quantity
24		Blank 2 More Info		$0.00	RTC Schematic quantity
25	APB62072RS	BEARING 6207-2RS More Info		$8.89	RTC Schematic quantity
26	APTX0304-	Drive Shaft RTC More Info	Model	$55.56	RTC Schematic quantity
27	APTX0306	GASKET-DRIVE SHAFT 112 X 96 X 9 X 0.5 More Info		$4.11	RTC Schematic quantity
28		Drive Shaft Tube Housing RTC More Info	Model	$57.40	RTC Schematic quantity
29	APBM1015025	BOLT 10 X 25MM More Info		$0.00	RTC Schematic quantity
30		Blank More Info		$0.00	RTC Schematic quantity
31	APTX0304Z	Ring Gear Z19 More Info		$73.33	RTC Schematic quantity
32		Blank 3 More Info		$0.00	RTC Schematic quantity
33		Blank 4 More Info		$0.00	RTC Schematic quantity
34		Blank 5 More Info		$0.00	RTC Schematic quantity
35	APTX0302	HOUSING-GEAR BOX More Info		$161.90	RTC Schematic quantity
36	APYT10660303000	GEARBOX OIL PLUG More Info		$9.27	RTC Schematic quantity
37	APOP1212500	OIL PLUG 12 X 1.25 More Info		$1.04	RTC Schematic quantity
38	APTX0301	LIFTING HOOK More Info		$21.56	RTC Schematic quantity
39		Blank 6 More Info		$0.00	RTC Schematic quantity
40		Blank 7 More Info		$0.00	RTC Schematic quantity
41	APDP1615000V	BREATHER CAP M16 X 1.5 VENTED More Info		$2.00	RTC Schematic quantity
42	APBM101525-1	BOLT 10 X 25 (Copy) More Info		$0.00	RTC Schematic quantity
43	APYT1066050200	STAND BRACKET More Info		$12.89	RTC Schematic quantity
44	APRC300000	R-CLIP 3MM More Info		$0.87	RTC Schematic quantity
45	APYT10660501	PIN STAND More Info		$2.00	RTC Schematic quantity
46		Blank 8 More Info		$0.00	RTC Schematic quantity
47	APYT1066050100	STAND LEG More Info		$14.00	RTC Schematic quantity
48	APTX601	SKID WELDMENT LEFT More Info		$77.11	RTC Schematic quantity
49	APNM24150	NUT 24 X 1.5 More Info		$0.00	RTC Schematic quantity
50	APOR253	O RING -25. X 3 More Info		$5.00	RTC Schematic quantity
51	APTX0501	SIDE GEAR COVER More Info		$88.00	RTC Schematic quantity
52	APOP1212500-1	OIL PLUG 12 X 1.25 (Copy) More Info		$1.04	RTC Schematic quantity
53	APTX0500	GASKET-SIDEGEAR CASE More Info		$18.89	RTC Schematic quantity
54	APBM812500	BOLT 8 X 1.25 X 20 More Info		$0.00	RTC Schematic quantity
55		Blank 9 More Info		$0.00	RTC Schematic quantity
56	APB3030500	BEARING 30305 More Info		$10.67	RTC Schematic quantity
57	APSRI62000-1-1	SNAP RING D.62 INTERNAL (2) More Info		$0.53	RTC Schematic quantity
58	APTX0511	SPACER More Info		$0.47	RTC Schematic quantity
59	APTX508	IDLER GEAR More Info		$59.33	RTC Schematic quantity
60	APNM30150	NUT-ROTOR 30 X 1.5 More Info		$0.00	RTC Schematic quantity
61	APSW3000	STAR WASHER -ROOTER More Info		$0.00	RTC Schematic quantity
62	APTX0509	GEAR-BOTTOM More Info		$126.67	RTC Schematic quantity
63	APTX0305	SIDE PANEL-LEFT More Info		$32.49	RTC Schematic quantity
64		Blank 10 More Info		$0.00	RTC Schematic quantity
65	APB6207000	BEARING 6207 More Info		$8.89	RTC Schematic quantity
66	APTX0406	GASKET ROTOR 102 X 73 X 0.5 More Info		$1.11	RTC Schematic quantity
67	APBM101525-2	BOLT 10 X 25 (2) More Info		$0.00	RTC Schematic quantity
68	APTX0403	BEARING SUPPORT More Info		$48.89	RTC Schematic quantity
69		Blank (Copy) More Info		$0.00	RTC Schematic quantity
70	APOS406210	OIL SEAL 40 X 62 X 10 More Info		$4.59	RTC Schematic quantity
71		RTC Blade More Info	Direction	$6.44	RTC Schematic quantity
72	APTX0401	ROTOR-RTC More Info	Size	$226.23	RTC Schematic quantity
73	APBM1212535	BLADE BOLT-12 X 35 FINE THREAD More Info		$1.05	RTC Schematic quantity
74	APNM120001	NUT 12MM FINE THREAD More Info		$0.00	RTC Schematic quantity
75	APLW12000	LOCK WASHER 12MM More Info		$0.00	RTC Schematic quantity
76	APTX0403-1	BEARING SUPPORT (1) More Info		$48.89	RTC Schematic quantity
77		N/A More Info		$0.00	RTC Schematic quantity
78		N/A (1) More Info		$0.00	RTC Schematic quantity
79		N/A (2) More Info		$0.00	RTC Schematic quantity
80		N/A (3) More Info		$0.00	RTC Schematic quantity
81	APTX0201	SIDE PANEL-RIGHT More Info		$0.00	RTC Schematic quantity
82	APBM101525-2-1	BOLT 10 X 25 (4) More Info		$0.00	RTC Schematic quantity
83	APGN06100	GREASE NIPPLE 6MM More Info		$0.00	RTC Schematic quantity
84	APTX602	SKID WELDMENT-RIGHT More Info		$77.11	RTC Schematic quantity
85		N/A (4) More Info		$0.00	RTC Schematic quantity
86		N/A (5) More Info		$0.00	RTC Schematic quantity
87		RTC FRAME WELDMENT More Info	Model	$0.00	RTC Schematic quantity
88	APBM1690	BOLT 16 X 90 More Info		$0.00	RTC Schematic quantity
89		RTC TAILGATE More Info	Model	$187.00	RTC Schematic quantity
90	APTX01	TAILGATE CHAIN ASSEMBLY More Info		$17.60	RTC Schematic quantity
91	APTXGBC1001	GEARBOX COMPLETE More Info		$331.11	RTC Schematic quantity
