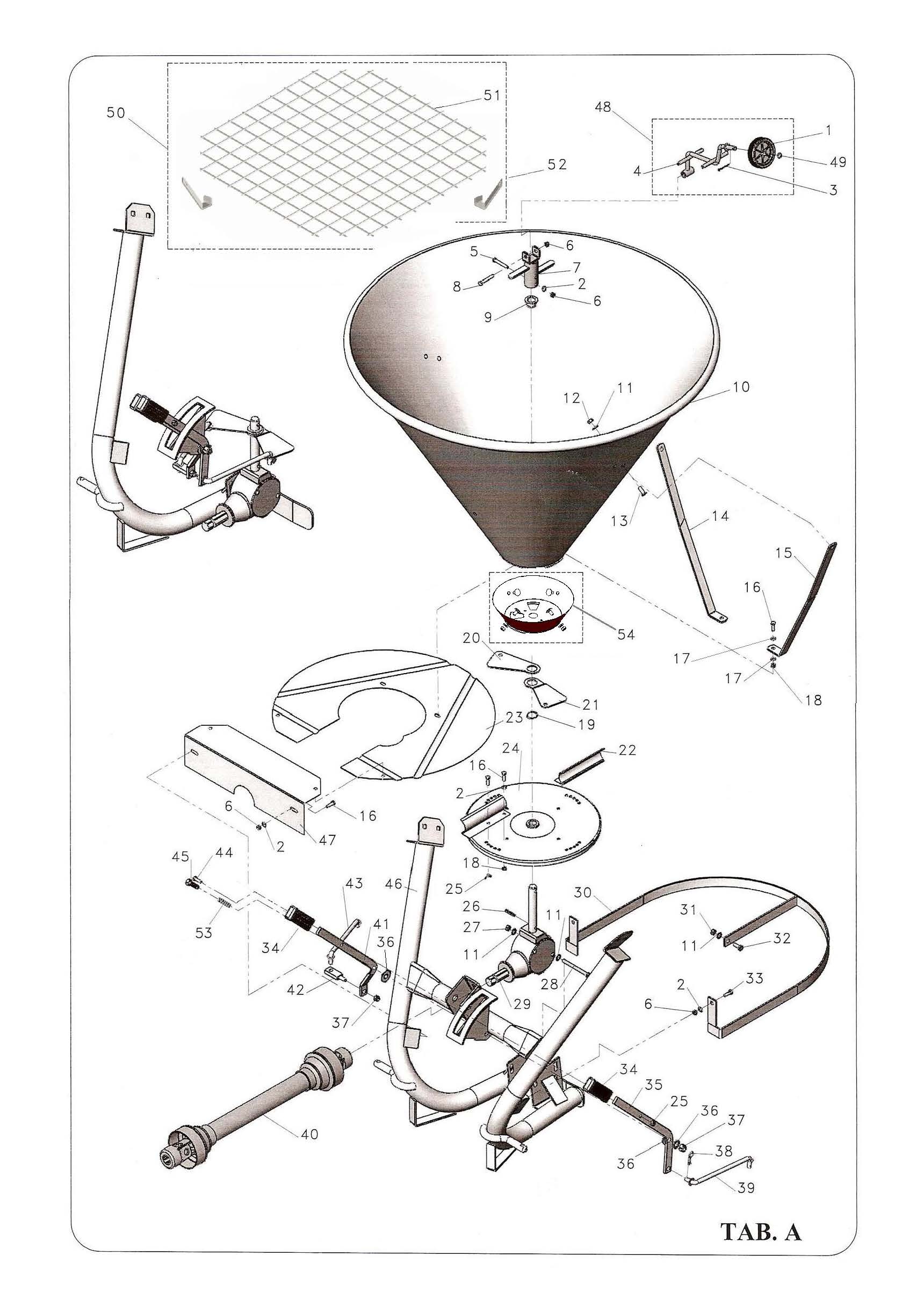

F500 3 Pt. Spreader Schematic – AgLine Farm Equipment

Press control and mousewheel to zoom in & out

S.No.	Part #	Product Name	Price	Qty	Action
		F500 3 Pt. Spreader Schematic		0.00	F500 3 Pt. Spreader Schematic quantity
1	APCZ_001228	Wheel for articulated agitator More Info		$7.47	F500 3 Pt. Spreader Schematic quantity
2	APCG_001062 (INOX)	Washer M8 More Info		$0.37	F500 3 Pt. Spreader Schematic quantity
3	APCV_001556	Split pin D.3 x 35 More Info		$0.19	F500 3 Pt. Spreader Schematic quantity
4	APAS_001290	Wheel holder for articulated agitator More Info		$28.00	F500 3 Pt. Spreader Schematic quantity
5	APCV_001479 (INOX)	Screw TE M8 x 55 More Info		$0.37	F500 3 Pt. Spreader Schematic quantity
6	APCD_001020 (INOX)	Self-Locking Nut M8 More Info		$0.47	F500 3 Pt. Spreader Schematic quantity
7	CZ_001150	Agitator More Info		$26.13	F500 3 Pt. Spreader Schematic quantity
8	APCV_001488 (INOX)	Screw M10 x 70 More Info		$0.47	F500 3 Pt. Spreader Schematic quantity
9	APCZ_001224 (INOX)	Bushing More Info		$6.35	F500 3 Pt. Spreader Schematic quantity
10		F500 Hopper Option More Info	Hopper Type	$350.00	F500 3 Pt. Spreader Schematic quantity
11	APCG_001010	Washer M10 (APCG_001010 More Info		$0.00	F500 3 Pt. Spreader Schematic quantity
12	CD_001116 (INOX)	Nut M10 More Info		$0.19	F500 3 Pt. Spreader Schematic quantity
13	CV_001502 (INOX)	Screw TTQST M10 x 25 More Info		$0.56	F500 3 Pt. Spreader Schematic quantity
14		Blank 1 More Info		$0.00	F500 3 Pt. Spreader Schematic quantity
15		Blank 2 More Info		$0.00	F500 3 Pt. Spreader Schematic quantity
16	APCV_001474 (INOX)	SCREW TE 8 x 20 More Info		$0.37	F500 3 Pt. Spreader Schematic quantity
17		Blank 3 More Info		$0.00	F500 3 Pt. Spreader Schematic quantity
18	APCD_001115	M8 Nut More Info		$0.19	F500 3 Pt. Spreader Schematic quantity
19	APCV_001568	Ring Seeger Spreader More Info		$0.75	F500 3 Pt. Spreader Schematic quantity
20	APSM_001124	RH Shutter Spreader More Info		$9.33	F500 3 Pt. Spreader Schematic quantity
21	APSM_00112	LH SHUTTER Spreader More Info		$9.33	F500 3 Pt. Spreader Schematic quantity
22	APSM_001027	Spreader Fan More Info		$11.20	F500 3 Pt. Spreader Schematic quantity
23		Blank 4 More Info		$0.00	F500 3 Pt. Spreader Schematic quantity
24	APAS_001263	Fan Holder Disk More Info		$46.67	F500 3 Pt. Spreader Schematic quantity
25	APCD_001123	M8 Wing Nut More Info		$0.30	F500 3 Pt. Spreader Schematic quantity
26	APCV_001411	Split pin 8 x 40 More Info		$0.19	F500 3 Pt. Spreader Schematic quantity
27		DUPLICATE of #12 More Info		$0.00	F500 3 Pt. Spreader Schematic quantity
28	APCV_001069	Screw TE M10 x 30 More Info		$0.00	F500 3 Pt. Spreader Schematic quantity
29	APCT_001007	3pt. Spreader Gear Box More Info		$121.33	F500 3 Pt. Spreader Schematic quantity
30		Blank 5 More Info		$0.00	F500 3 Pt. Spreader Schematic quantity
31	APCD_001121	Self Locking M10 Nut More Info		$0.93	F500 3 Pt. Spreader Schematic quantity
32	APCV_001482	Screw TE M10 x 30 More Info		$0.19	F500 3 Pt. Spreader Schematic quantity
33	APCV_001476	Screw TE M8 x 30 More Info		$0.19	F500 3 Pt. Spreader Schematic quantity
34	APCZ_001219	Spreader Handle End More Info		$6.53	F500 3 Pt. Spreader Schematic quantity
35	APSM_001090	LH Spreader Handle More Info		$18.67	F500 3 Pt. Spreader Schematic quantity
36	APCG_001064	Washer M12 More Info		$0.19	F500 3 Pt. Spreader Schematic quantity
37	APCD_001122	M12 Self Locking Nut More Info		$0.19	F500 3 Pt. Spreader Schematic quantity
38		Split Pin diameter 3 x 35 refer to REF#3 More Info		$0.00	F500 3 Pt. Spreader Schematic quantity
39	APAS_001256	LH Connection Rod More Info		$24.27	F500 3 Pt. Spreader Schematic quantity
40	APCA_001002	Spreader PTO Shaft Complete More Info		$93.33	F500 3 Pt. Spreader Schematic quantity
41	APSM_001091	RH Lever 3pt. Spreader More Info		$18.67	F500 3 Pt. Spreader Schematic quantity
42	APCZ_001045	Lever Return 3pt. Spreader More Info		$5.23	F500 3 Pt. Spreader Schematic quantity
43	APAS_001219	RH Connecting Rod 3pt. Spreader More Info		$22.40	F500 3 Pt. Spreader Schematic quantity
44	APCV_001478	Screw TE M8 x 40 More Info		$0.19	F500 3 Pt. Spreader Schematic quantity
45	APCV_001496	Screw TE M12 x 80 More Info		$2.24	F500 3 Pt. Spreader Schematic quantity
46	APAS_001033	3pt. Spreader Frame More Info		$298.67	F500 3 Pt. Spreader Schematic quantity
47	APSM_001038	Spreader Front Guard More Info		$15.87	F500 3 Pt. Spreader Schematic quantity
48	APAC_04	Articulated Agitator More Info		$26.00	F500 3 Pt. Spreader Schematic quantity
49	APCG_001069 (INOX)	M10 x 30 Washer More Info		$0.09	F500 3 Pt. Spreader Schematic quantity
50	APAC_F05	Spreader Filtering Net More Info		$0.00	F500 3 Pt. Spreader Schematic quantity
51		Blank More Info		$0.00	F500 3 Pt. Spreader Schematic quantity
52		Blank (Copy) More Info		$0.00	F500 3 Pt. Spreader Schematic quantity
53	APCM_001016	Lever Adjustment Spring Spreader More Info		$2.61	F500 3 Pt. Spreader Schematic quantity
