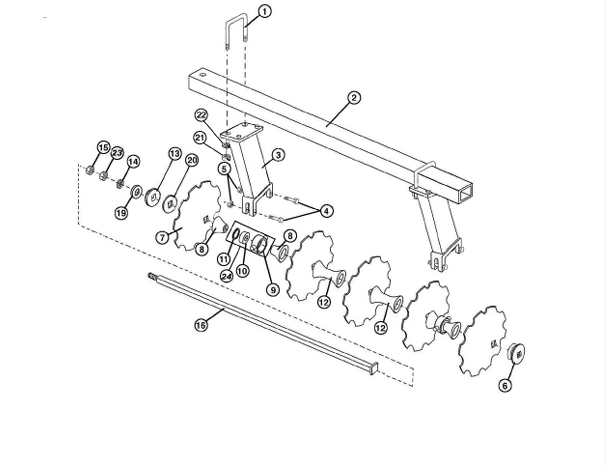

Rear Gang Assembly Schematics – AgLine Farm Equipment

Press control and mousewheel to zoom in & out

S.No.	Part #	Product Name	Option	Price	Qty
		Rear Gang Assembly Schematics		0.00	Rear Gang Assembly Schematics quantity
1		DH51 U- bolt More Info	Tube Size	$17.72	Rear Gang Assembly Schematics quantity
2		DH51 Rear Gang Beam More Info	size	$0.00	Rear Gang Assembly Schematics quantity
3		DH51 Gang Hanger More Info	Tube Size	$109.33	Rear Gang Assembly Schematics quantity
4	1678-141918	3/8"-16 x 3" Gr. 5 Cap Screw Zinc More Info		$2.65	Rear Gang Assembly Schematics quantity
5	1403-25194	3/8"-16 Flange Locking Nut Gr. 5 More Info		$1.20	Rear Gang Assembly Schematics quantity
6	2859-2487	1 1/8" Slotted End Spacer More Info		$14.77	Rear Gang Assembly Schematics quantity
7		1 1/8" SCH Disc Blades DH51 & DH34 More Info	Blade Type Blade Size	$37.37	Rear Gang Assembly Schematics quantity
8		DH51 Half Spacer Options More Info	Spacer Size	$19.28	Rear Gang Assembly Schematics quantity
9		1 1/8" Trunnion Housing w/ Bearing More Info	Lube Type	$85.43	Rear Gang Assembly Schematics quantity
10		DH51 Spacer Options More Info	Spacer Length	$34.96	Rear Gang Assembly Schematics quantity
11	2557-113223	1 1/8" End Washer Cast More Info		$11.91	Rear Gang Assembly Schematics quantity
12	1655-31204	1 1/8" Lock Washer More Info		$1.23	Rear Gang Assembly Schematics quantity
13	1638-30358	1 1/8" Lock Nut More Info		$6.91	Rear Gang Assembly Schematics quantity
14		DH51 Rear Gang Axles More Info	DH51 Rear Axle length	$98.33	Rear Gang Assembly Schematics quantity
15	1330-32204	1 1/8" Flat Washer Zinc More Info		$1.19	Rear Gang Assembly Schematics quantity
16	1383-232027	1 1/8" Slack Washer More Info		$9.69	Rear Gang Assembly Schematics quantity
17	1730-152937	3/4" Hex Lock Nut More Info		$0.73	Rear Gang Assembly Schematics quantity
18	1102-281739	3/4" Lock Washer More Info		$0.40	Rear Gang Assembly Schematics quantity
19	1015-33355	JAM NUT, 1 1/8” More Info		$4.98	Rear Gang Assembly Schematics quantity
