S.No. Part # Product Name Option Price Qty Action

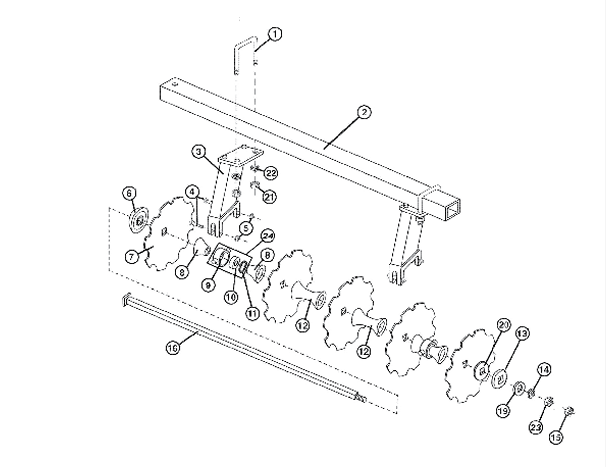

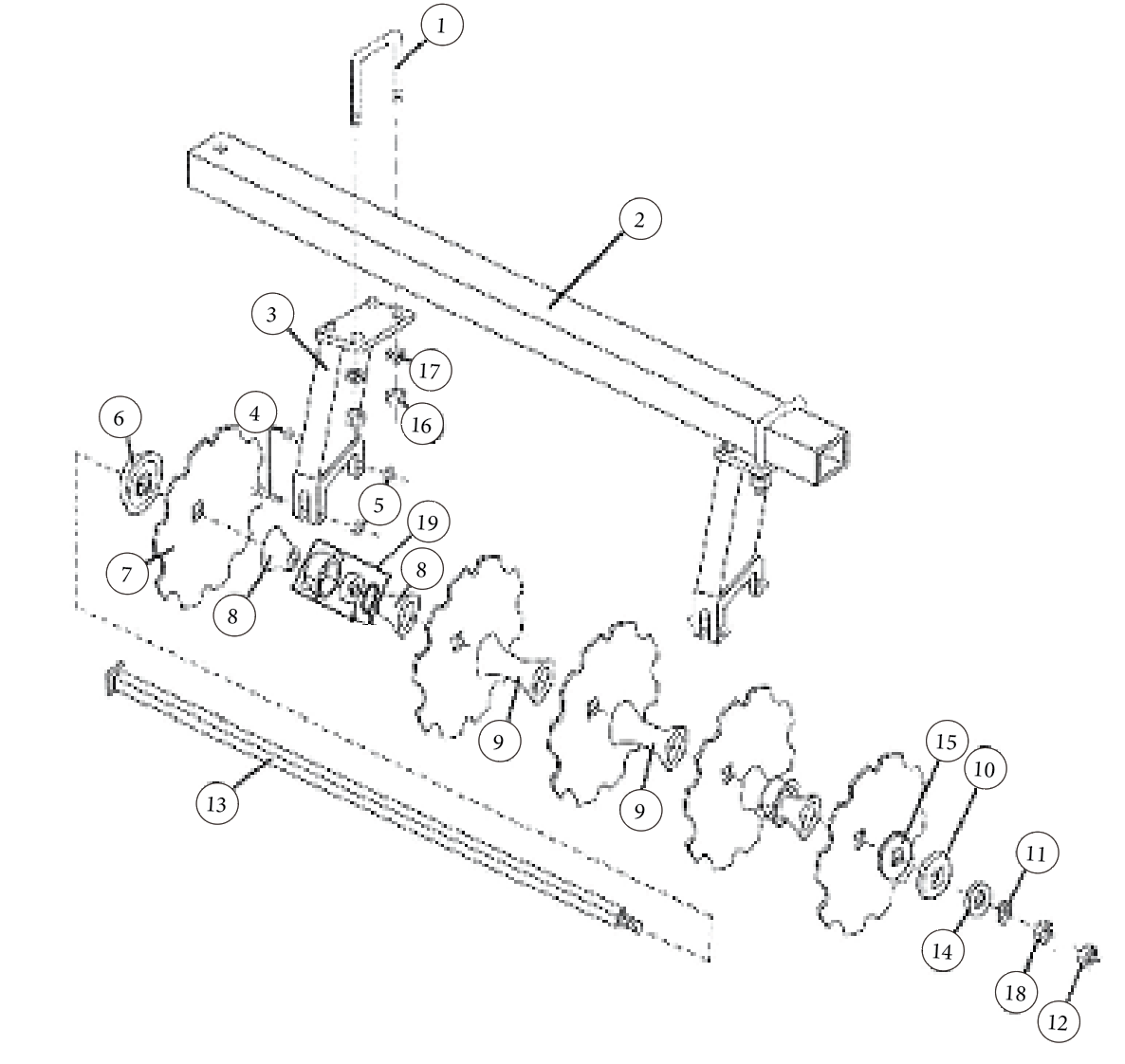

Front Gang Assembly Schematic
0.00
1 DH51 U- bolt
More Info
$17.72
2 DH51 Front Gang Beam
More Info
$115.00
3 DH51 Gang Hanger
More Info
$109.33
4 1678-141918 3/8"-16 x 3" Gr. 5 Cap Screw Zinc
More Info
$2.65
5 1403-25194 3/8"-16 Flange Locking Nut Gr. 5
More Info
$1.20
6 2933-23623 1 1/8" Bumper Washer Front Cast
More Info
$12.35
7 1 1/8" SCH Disc Blades DH51 & DH34
More Info
$37.37
8 2451-9623 END SPACER 1 1/8" X 3"
More Info
$19.28
9 2924-111823 1 1/8" x 7 1/2" Spacer
More Info
$37.33
10 2557-113223 1 1/8" End Washer Cast
More Info
$11.91
11 1655-31204 1 1/8" Lock Washer
More Info
$1.23
12 1638-30358 1 1/8" Lock Nut
More Info
$6.91
13 1 1/8" Square Gang Axles
More Info
$61.50
14 1330-32204 1 1/8" Flat Washer Zinc
More Info
$1.19
15 1383-232027 1 1/8" Slack Washer
More Info
$9.69
16 1730-152937 3/4" Hex Lock Nut
More Info
$0.73
17 1102-281739 3/4" Lock Washer
More Info
$0.40
18 1015-33355 JAM NUT, 1 1/8”
More Info
$4.98
19 2685-40323 Trunnion Housing Bearing Assemlbly 1 1/8" TMBT602
More Info
$85.43
