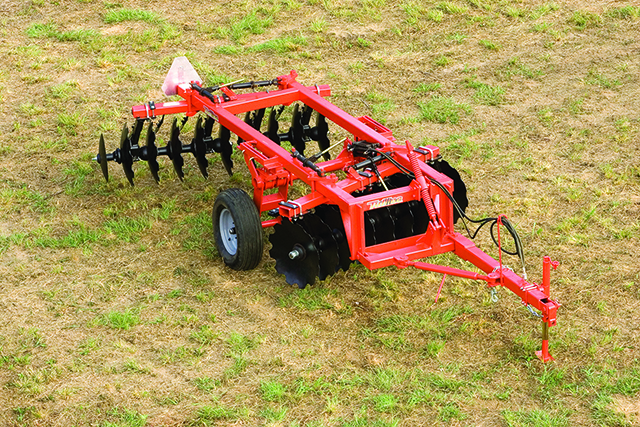

38 Series Offset Wheel Disc Harrows
Tufline’s 38 Series Offset Disc Harrows are designed for 50 to 80 horsepower tractors. The mainframe is constructed of heavy duty 4” square tube and 5” x 3” square tube gang beams. The gangs have a 1 1/2” RC square gang axles with triple sealed ball bearings. All units have a front to rear spring loaded leveling system and a tongue and yoke system for side draft control. Gang angle is adjustable and the gangs are available with tubular or shock flex gang hangers. 22” or 24” notched blades are standard with plain blades optional. Safety chain and mounted tongue jack are standard. Hydraulic cylinder, hoses, and tires are also standard equipment.
Additional information
| Weight | N/A |
|---|---|
| Width | 6', 6'10", 7'8", 8'6", 9'4", 10'2" |
| Blade Size | 22", 24" |
| Blade Type | Notched/Notched, Smooth/Smooth |
| Spacing | 10 1/2" |
| Gang | Fixed, Shock Flex |
| Color | Tufline Red, Black |
38 Series Offset 6′-10’2″ (50-90) horsepower 10 1/2″ Spacing Temporarily Suspended
38 Series Offset Wheel Disc Harrows
Tufline’s 38 Series Offset Disc Harrows are designed for 50 to 80 horsepower tractors. The mainframe is constructed of heavy duty 4” square tube and 5” x 3” square tube gang beams. The gangs have a 1 1/2” RC square gang axles with triple sealed ball bearings. All units have a front to rear spring loaded leveling system and a tongue and yoke system for side draft control. Gang angle is adjustable and the gangs are available with tubular or shock flex gang hangers. 22” or 24” notched blades are standard with plain blades optional. Safety chain and mounted tongue jack are standard. Hydraulic cylinder, hoses, and tires are also standard equipment.
$11,663.00 – $17,822.00
